The Vertebral Column as a Whole

Complete anatomy

Vertebral column

Identify these features of the vertebral column:

Primary curvatures

Thoracic and sacral

Question

Primary curvatures = What is the concept?

Secondary curvatures

Cervical and lumbar



Question

Secondary curvatures = When are these acquired?

Cervical vertebrae (7)

Thoracic vertebrae (12)

Lumbar vertebrae (5)

Question

Food always helps one to learn, eh? Try this one out: Cereal @ 7, Tacos at 12, Lasagna @ 5

Sacrum

Coccyx

Vertebral canalwhat does it contain?

Intervertebral foraminawhich structures traverse these?

Figure 2.1. Clinically Oriented Anatomy, 7th ed., Figure 4.1.

Common Features of All Vertebrae

Identify these characteristics of a typical vertebra:

Vertebral body

Vertebral arch

Pedicle

Laminae

Transverse processes—note the articular facets for ribs

Spinous process

Superior and inferior articular processes

Superior and inferior notches

Figure 2.2. Characteristics of a typical vertebra. Clinically Oriented Anatomy, 7th ed., Figure 4.2.

Question

Stack two vertebrae on one another: How are the intervertebral foramina formed?

Note

Make sure you can identify the above structures in vertebrae from different regions.

Unique Features of Specific Vertebrae

Certain characteristics are specific to regions of the vertebral column or individual vertebrae. Review the unique features of cervical, thoracic and lumbar vertebrae in the sections below.

Cervical Vertebrae

Complete anatomy

Cervical vertebra

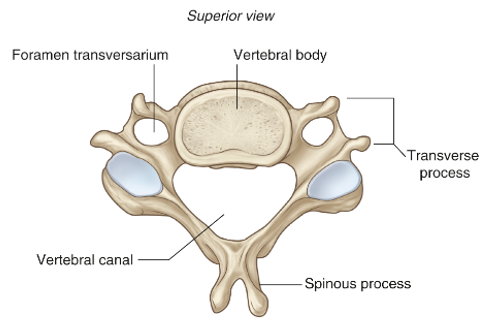

A typical cervical vertebra has the following features:

Small square bodies with a large vertebral foramen

Presence of a foramen in each transverse process (foramen transversarium) — What do they contain?

Short bifid spinous process

Figure 2.3.

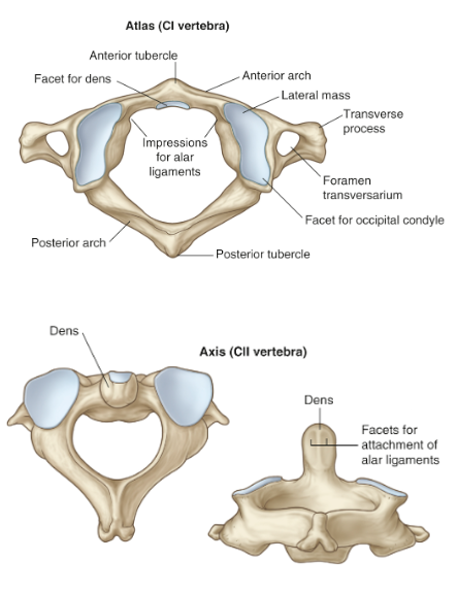

Because the first two cervical vertebrae have special articulations to allow for head movement, they have some unique features:

Atlas (C-1): has no body—instead, it has anterior and posterior arches

Axis (C-2): the body has a vertical extension called the dens

Figure 2.4.

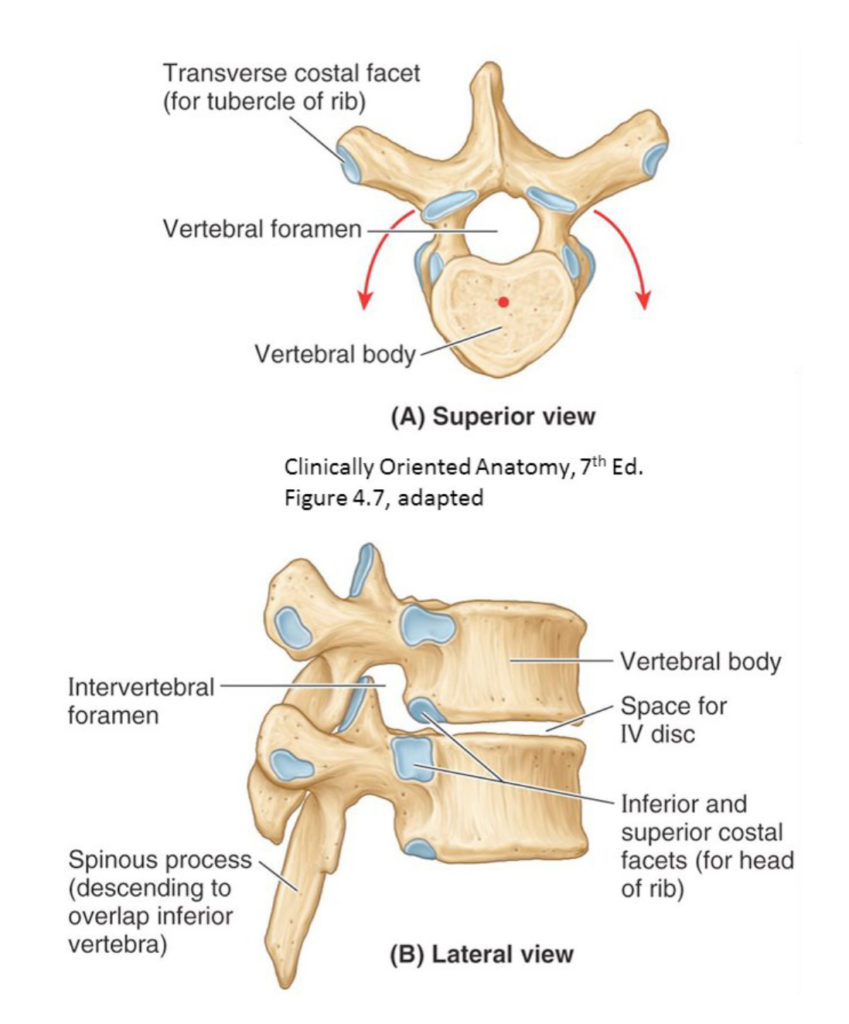

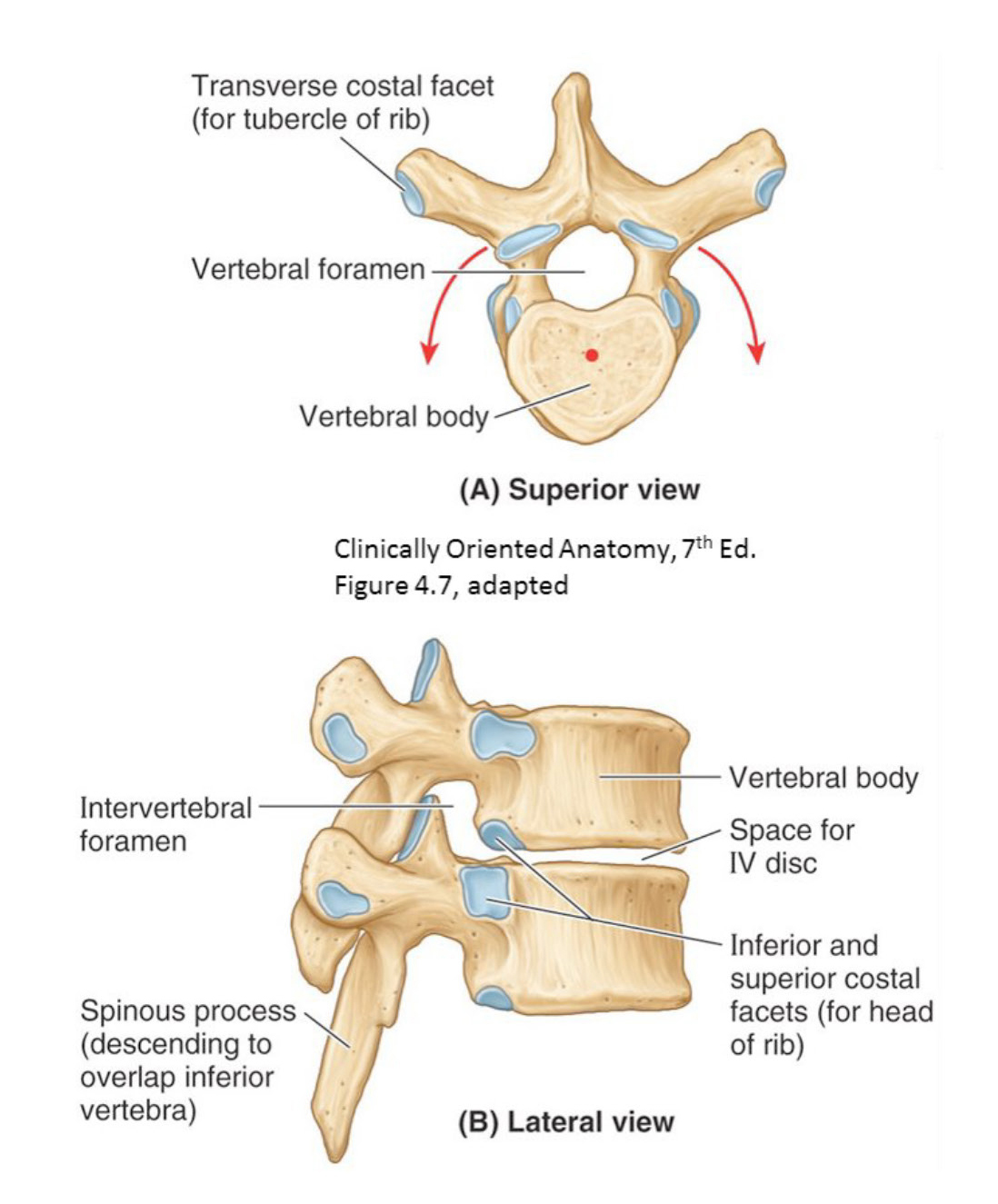

Thoracic Vertebrae

Complete anatomy

Thoracic vertebra

Note the sloping, overlapping, spinous processes.

Identify the costal facets on the vertebral bodies and on the transverse processes. Which structures articulate on the costal facets?

Figure 2.5.

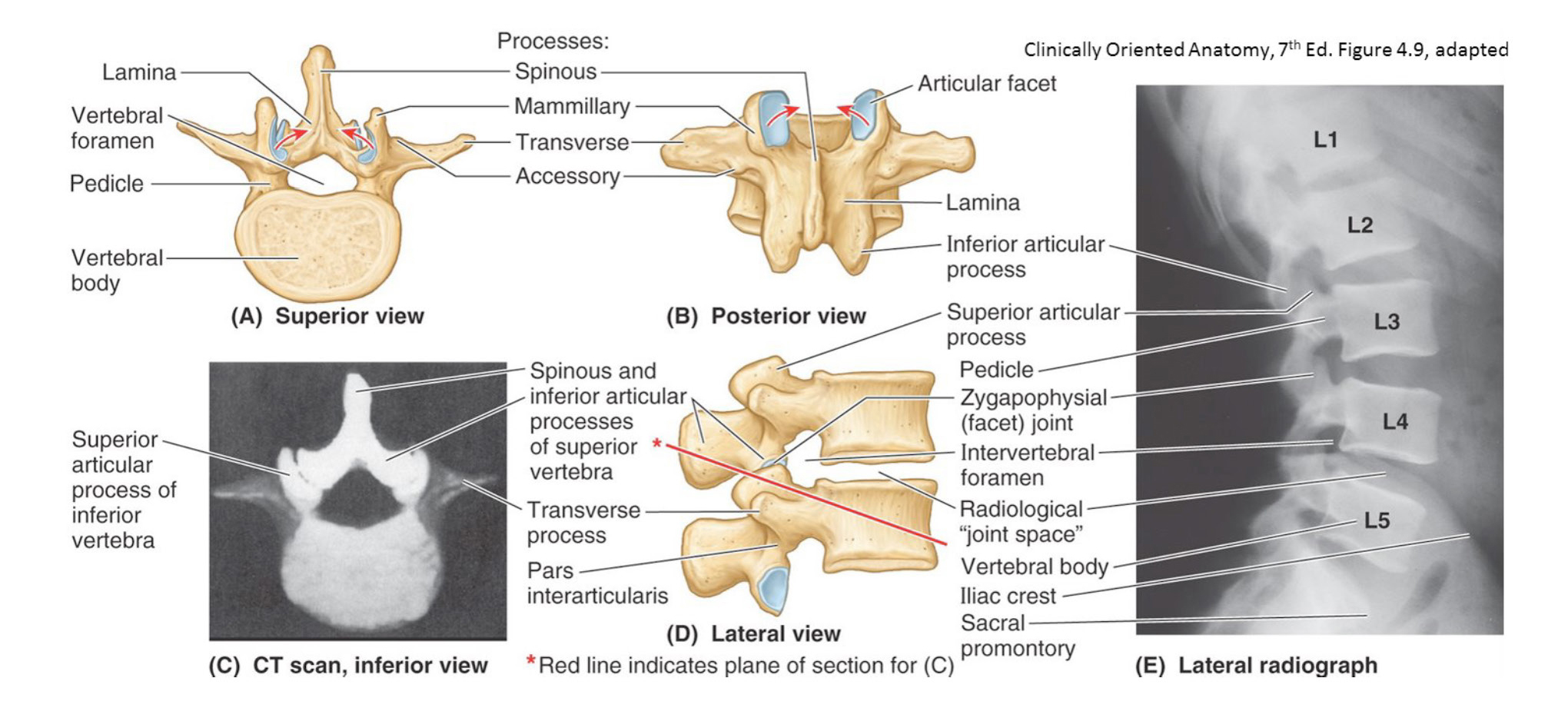

Lumbar Vertebrae

Complete anatomy

Lumbar vertebra

These are wide and stout, with blunt spinous processes.

Figure 2.6.

Exercise

Can you match an isolated vertebra to the region it belongs to?
