Station 1. Meninges and ventricles

Neuroanatomy lab navigation

Identify the parts of the ventricular system on a mid-sagittal brain, coronal sections, and model.

The formation of the ventricular system, as it relates to development, was discussed in the Neuroembryology session.

Review the clinical significance of the flow and blockage of CSF

For further reference

Figure 1.
Figure 2.

Lateral ventricles

Anterior horn

Body

Inferior horn

Interventricular foramen

Third ventricle

Cerebral aqueduct

Fourth ventricle

Figure 3.

Ventricles

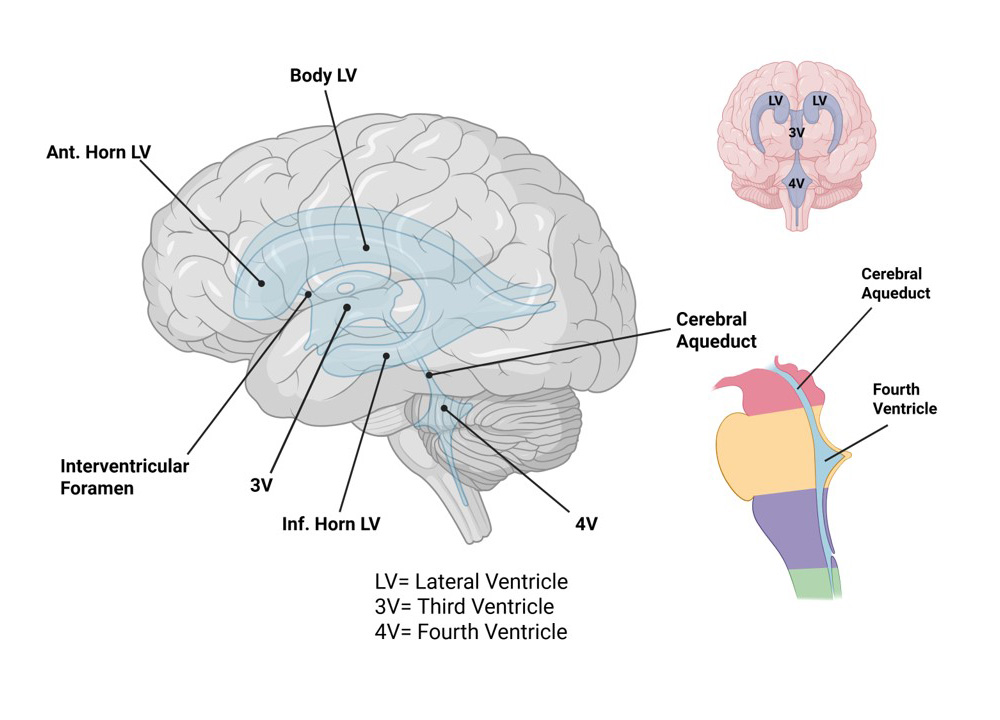

Figure 4. Diagram of the ventricular system.
From Neuroanatomy: A Laboratory Guide (2e);
Jansen and Lampa (2018).
Figure 4. Diagram of the ventricular system.
From Neuroanatomy: A Laboratory Guide (2e);
Jansen and Lampa (2018).

The shape of lateral ventricles changes from anterior to posterior

    • Portions of the lateral ventricle include: the anterior horn, body, atrium, posterior horn, and inferior horn
    • Septum pellucidum: The midline membrane separating the two lateral ventricles
    • Interventricular foramen (foramen of Monro) opening into the 3V from the LV
  • Cerebral aqueduct (Sylvian aqueduct); the inferior exit point of the 3V
  • Lamina terminalis (anterior border of 3V): red arrow in Figure 4.
  • Formed by a depression in the rhomboid fossa
  • One median foramen (Magendie) and two lateral foramina (Luschka) exit from the 4V into the subarachnoid space. These openings are often difficult to visualize.

Note

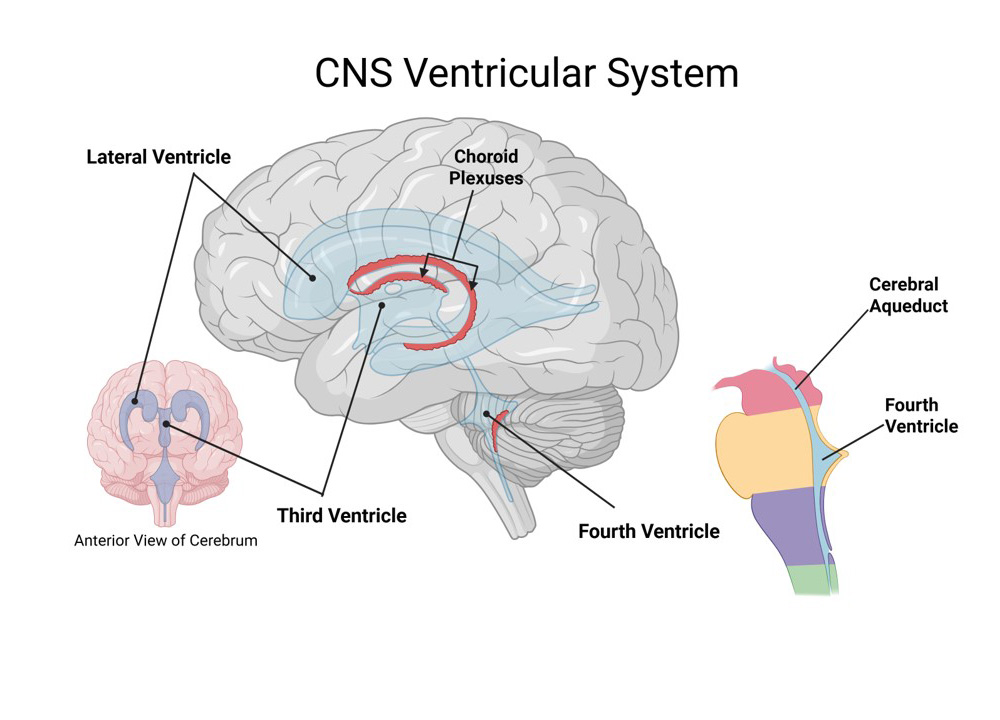

Within all the ventricles are the choroid plexuses, which are producing cerebrospinal fluid.

Go to visible ventricles

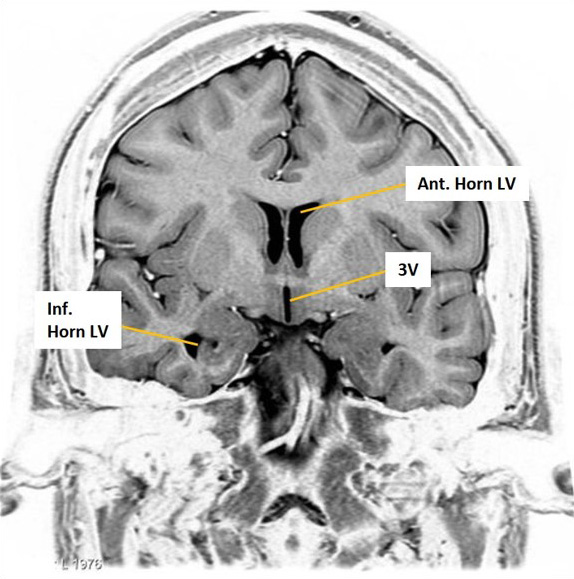

Figure 5. Coronal section through the thalamus. Note the lateral ventricles are located superior to the thalamus (TH), and the third ventricle is medial to the thalamus. Specimen from the Neuroanatomy Collection; Washington State University College of Veterinary Medicine.
Trace the flow of cerebrospinal fluid.
Figure 6. T1-MRI of ventricles, CSF flow, mid-sagittal section. from Neuroanatomy archive, Washington State University College of Veterinary Medicine.

CSF is produced in all of the ventricles by choroid plexuses (w/ a total volume of ~25 ml in all the ventricles); the MRI in Figure 6 indicates the direction of flow of cerebrospinal fluid between the ventricles.

CSF flows freely between the two LVs and 3V, via the interventricular foramen; from the 3V through the cerebral aqueduct into the 4V; finally out into the subarachnoid space (the direction CSF flow is indicated by the yellow arrows).

Meninges

Review the anatomy lab

  • Pia mater
  • Arachnoid mater
  • Dura mater
    • Falx cerebri: Separating the cerebral hemispheres
    • Tentorium cerebelli: The tentorium cerebelli separates the cranial cavity into two compartment (Figure 7), and there is also a prominent tentorial notch that allows for passage of the brainstem
      • The supratentorial compartment contains the cerebrum.
      • The infratentorial compartment contains the brainstem and cerebellum.
Figure 7. Supratentorial and infratentorial compartments. From Herniation Syndromes: Brain and Spinal Discs; Neuroanatomy in Clinical Context: An Atlas of Structures, Sections, Systems, and Syndromes, 9e, 2014; Copyright © Wolters Kluwer.

The brain and spinal cord are covered by the dura mater, arachnoid mater, and pia mater. The periosteal and meningeal layers of the dura are separated as the dural venous sinuses (e.g., superior sagittal sinus). Small tufts of arachnoid tissue, the arachnoid villi, project into the superior sagittal venous sinus (Figure 8).

The space between the arachnoid and pia mater is the subarachnoid space (Figure 8); it is enlarged surrounding CNS structures as cisterns.

Figure 8. Meninges and meningeal spaces. By OpenStax, CC BY 4.0. Modified 7/09/18 Lampa.

Note

The meningeal spaces in the cranial cavity are only present between the periosteum and dura (epidural space) and dura and arachnoid (subdural space) in pathological conditions, like hematomas or abscesses. The only “real” space is the subarachnoid space that contains CSF.

Thought question

Soft tissue structures may herniate inferior to the falx cerebri or through the tentorial notch. A mass that is supratentorial can force the brain into the tentorial notch, trans-tentorial herniation. What are signs and symptoms of a trans-tentorial herniation?

Uncal herniation can occur when a mass in the temporal lobe pushes the uncus through the tenorial notch and into the brainstem.

    • Identify the region of the brainstem that could be affected.
    • Predict signs and symptoms associated with cranial nerve damage.

Thought question

In a skull fracture, which significant artery is at risk of being damage leading to an epidural hematoma (indicated by the red arrow) in Figure 9?

Figure 9. CT image of an epidural hematoma. By James Heilman, MD, Own work, CC BY-SA 4.0.
Figure 9. CT image of an epidural hematoma. By James Heilman, MD, Own work, CC BY-SA 4.0.

Tearing of the bridging veins that connect into the superior sagittal sinus, often times accompanying a fall, can result in a subdural hemorrhage/hematoma. See Figure 10.

Thought question

Why does the spread of a subdural hematoma (indicated by the blue arrow) appear more diffuse on a CT or MRI than an epidural hematoma?

Figure 10. Subdural hematoma
(CT image). From Intracranial Hemorrhage and Related Conditions, McKean SC, Ross JJ, Dressler DD, Scheurer DB. Principles and Practice of Hospital Medicine, 2e; 2017. Copyright © 2018 McGraw-Hill Education. All rights reserved.

Meningeal spaces

  • Epidural
  • Subdural
  • Subarachnoid
    • Cisterns are the naturally enlarged subarachnoid spaces where CSF collects. (Figure 11)
      • Interpeduncular cistern (anterior to the midbrain)
      • Cisterna magna (large space located around the spinal cord–medullary junction surrounding the foramen magnum)
      • Lumbar cistern (the subarachnoid space located from L3 to S2 after the termination of the spinal cord)
Figure 11. Horizontal T2-weighted MRI of subarachnoid cisterns (on the MRI images a green reference line indicates the level of the section). Note that the cerebrospinal fluid in the subarachnoid spaces on these images appears white. Images were generated from neuroanatomy archive. Washington State University College of Veterinary Medicine.

Thought question

Identify the ventricles on sagittal sections through the cerebrum and on MRI images.

Identify arachnoid granulations (villi).

The arachnoid villi are the locations for the re-entry of the majority of the cerebrospinal fluid into the venous circulation (Figure 12).

Arachnoid granulations

Figure 12. Arachnoid granulations. Image shows multiple arachnoid granulations (calcified arachnoid villi indicated by the black arrows) with lie adjacent to the longitudinal fissure. Note that the dura mater has been removed and only the arachnoid mater is visible on the superior surface of the cerebrum. Specimen from the Neuroanatomy Collection, Washington State University College of Veterinary Medicine.

move on to the next station
