These worksheets are for self-study only. Answers will not be evaluated.

Worksheet 1

Examine the whole strip and determine an atrial and ventricular rate.

Atrial rate Ventricular rate Diagnosis

Sinus rhythm.

Worksheet 2

Examine the whole strip and determine an atrial and ventricular rate.

Atrial rate Ventricular rate Diagnosis

1° Degree AV block.

Worksheet 3

Examine the whole strip and determine an atrial and ventricular rate.

Atrial rate Ventricular rate Diagnosis

Sinus rhythm with two PAC’s.

Worksheet 4

Examine the whole strip and determine an atrial and ventricular rate.

Atrial rate Ventricular rate Diagnosis

CHB, atrial rate 79, ventricular rate 37.

Worksheet 5

Examine the whole strip and determine an atrial and ventricular rate.

Atrial rate Ventricular rate Diagnosis

PVC, followed by 3:2 and 2:1 Wenckebach.

Worksheet 6

Examine the whole strip and determine an atrial and ventricular rate.

Atrial rate Ventricular rate Diagnosis

Sinus rhythm with two PAC’s.

Worksheet 7

Examine the whole strip and determine an atrial and ventricular rate.

Atrial rate Ventricular rate Diagnosis

Ventricular tachycardia.

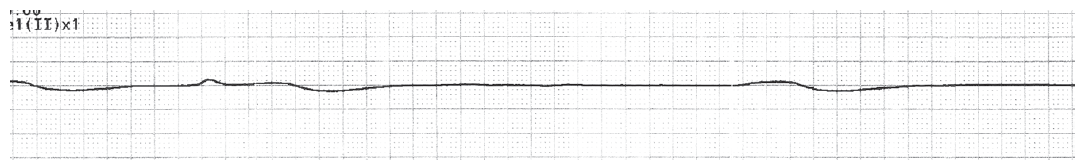

Worksheet 8

Examine the whole strip and determine an atrial and ventricular rate.

Atrial rate Ventricular rate Diagnosis

Asystole.

Worksheet 9

Examine the whole strip and determine an atrial and ventricular rate.

Atrial rate Ventricular rate Diagnosis

Atrial and ventricular pacing. The pacing spike hits the T wave, causing V Tach, and V fib.

Worksheet 10

Examine the whole strip and determine an atrial and ventricular rate.

Atrial rate Ventricular rate Diagnosis

Atrial flutter with 6:1 conduction.

Worksheet 11

Examine the whole strip and determine an atrial and ventricular rate.

Atrial rate Ventricular rate Diagnosis

PVC.

Worksheet 12

Examine the whole strip and determine an atrial and ventricular rate.

Atrial rate Ventricular rate Diagnosis

1° AV block, 2:1 2° AVB. Probable bundle branch block.

Worksheet 13

Examine the whole strip and determine an atrial and ventricular rate.

Atrial rate Ventricular rate Diagnosis

Atrial fibrillation, ventricular rate 180.

Worksheet 14

Examine the whole strip and determine an atrial and ventricular rate.

Atrial rate Ventricular rate Diagnosis

Sinus rhythm with first degree AV block, and a PAC, followed by an atrial paced beat.

Worksheet 15

Examine the whole strip and determine an atrial and ventricular rate.

Atrial rate Ventricular rate Diagnosis

2 dropped P waves. 2° AV block, Type II.

Worksheet 16

Examine the whole strip and determine an atrial and ventricular rate.

Atrial rate Ventricular rate Diagnosis

Atrial fibrillation followed by a two second pause, then ending up as sinus rhythm.
